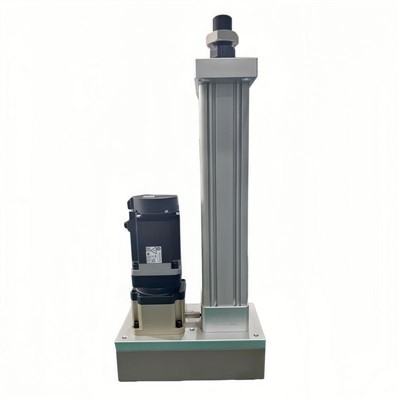

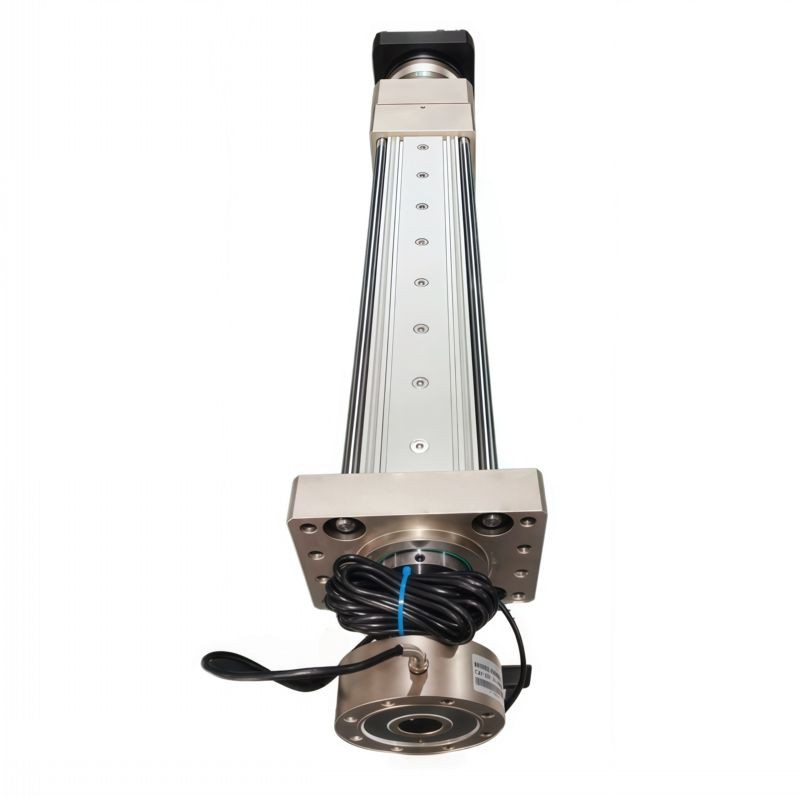

Lde125 to'g'ridan-to'g'ri - Yuqori aniqlikdagi alyuminiy elektr tsilindrini, past shovqin, silliq va osoyishta operatsiyani, yog '- yog' igisiga olib boring, ish muhitini yaxshilang. Laboratoriyalar, shifoxonalar va idoralar uchun javob beradi, bu foydalanuvchi tajribasini kuchaytiradi va atrof-muhitga uyg'unlik uyg'otadi.
|
Motor kuchi(W) |
1000W (3000rpm) |
1000W (2000rpm) |
1500W (2000rpm) |
2000W (2000rpm) |
|
Baholangan moment n. m |
3.18 |
4.77 |
7.16 |
9.55 |
|
Haydash rejimi |
Ball Vall C7 konversiya / to'pni vintli c5 silindr qilish (standart c7) |
|||
|
Joylashtirish aniqligini takrorlang (mm) |
±0.02/±0.01 |
|||
|
Vintli peshqadam (mm) |
10 |
10 |
10 |
10 |
|
Maks tezligi (mm / sek) |
18 (28: 1) 17 (30: 1) 14 (35: 1) |
17 (20: 1) |
28 (12: 1) 22 (15: 1) |
33 (10: 1) |
|
Red Trust (n) |
47516 (28: 1) 50910 (30: 1) 59395 (35: 1) |
50920 (20: 1) |
45864 (12: 1) 57330 (15: 1) |
50980 (10: 1) |
|
Samarali insult (mm) |
10-2000 |
|||
|
Sensor |
Elektron magnitli kalit * 3 |
|||
|
Motor kuchi(W) |
3000W (2000rpm) |
3000W (1500rpm) |
4500W (1500rpm) |
5500W (1500rpm) |
|
Baholangan moment n. m |
14.32 |
19.1 |
28.65 |
35.01 |
|
Haydash rejimi |
Ball Vall C7 konversiya / to'pni vintli c5 silindr qilish (standart c7) |
|||
|
Joylashtirish aniqligini takrorlang (mm) |
±0.02/±0.01 |
|||
|
Vintli peshqadam (mm) |
10 |
10 |
10 |
10 |
|
Maks tezligi (mm / sek) |
56 (6: 1) 48 (7: 1) |
50 (5: 1) |
63 (4: 1) |
83 (3: 1) |
|
Red Trust (n) |
45798 (6: 1) 53431 (7: 1) |
50978 (5: 1) |
54377 (4: 1) |
56066 (3: 1) |
|
Samarali insult (mm) |
10-2000 |
|||
|
Sensor |
Elektron magnitli kalit * 3 |
|||
TSS
Savol: Elektron aloqa rejasi talablari paytida qaysi parametrlarni tasdiqlash kerak?
Javob: Maksimal yuk, maksimal sayohat, maksimal daraja, motor turi (yuqori harorat, changga chidamli, - turg'un va vertikal foydalanish.
Ushbu lde125 to'g'ridan-to'g'ri element - Yuqori aniqlikdagi alyuminiy elektr tsilindrini ulang.
Issiq teglar: Yuqori aniqlik elektr tsilindr, Xitoy yuqori aniqlik elektr tsilindrli tsilindr etkazib beruvchilari, fabrikasi
